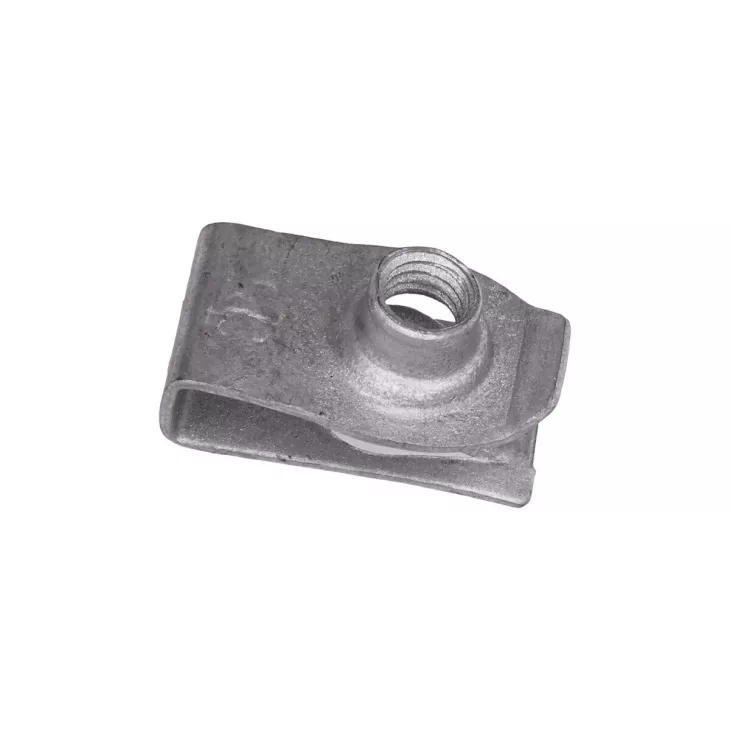

This steel metric extruded U-nut is designed for GM automotive mounting applications requiring an M6-1.0 threaded attachment point at the edge of a panel. Genuine GM applications include windshield washer reservoir, fuel filler pipe bracket and other component mounting locations.
The U-nut accommodates panel thicknesses from 2.0mm to 5.0mm and positions the center of the threaded hole 14.5mm from the panel edge. It features a phosphate zinc-organic finish and cross-references GM OEM number 11516372.
OEM Cross Reference
GM: 11516372
| Product Type | Metric Extruded U-Nut |
| Application | Automotive Panel & Component Mounting |
| Thread Size | M6-1.0 |
| Panel Range | 2.0mm - 5.0mm |
| Center of Hole to Edge | 14.5mm |
| Material | Steel |
| Finish | Phosphate Zinc Organic |
| Color | Black |
| OEM Cross References | GM 11516372 |
