Proudly focused on American made products.

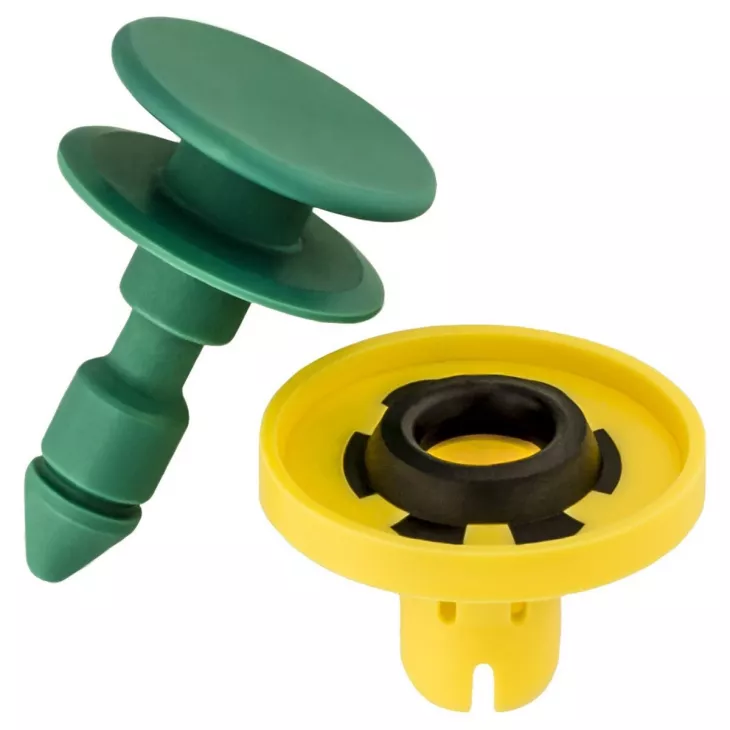

This green and yellow nylon two-piece retainer and grommet set is designed for GM door trim panel fastening applications. The green pin and yellow grommet provide the original-style attachment configuration for compatible door panels when the original fastener matches the required dimensions.
The assembly fits a 9mm mounting hole and features a 19mm pin top head, 19.5mm pin bottom head, 22mm pin stem, 24mm grommet flange and 12mm grommet stem. It includes a sealer and cross-references GM OEM number 11562257.
OEM Cross Reference
GM: 11562257
| Product Type | Door Trim Panel Retainer & Grommet Set |
| Application | GM Door Trim Panels |
| Type | Two-Piece Pin & Grommet Set |
| Hole Size | 9mm |
| Pin Bottom Head Diameter | 19.5mm |
| Pin Top Head Diameter | 19mm |
| Pin Stem Length | 22mm |
| Grommet Flange Diameter | 24mm |
| Grommet Stem Length | 12mm |
| Material | Nylon |
| Color | Green Pin & Yellow Grommet |
| Includes | Pin, Grommet & Sealer |
| OEM Cross References | GM 11562257 |
